A fill-in label is shipped with each I/O base. This label should be placed on the Momentum processor adapter that you mount on that base.
A completed label provides information about the assembled module and its I/O field devices that can be used by service and maintenance personnel.
The model number of the I/O base is marked on the fill-in label directly above the color code. The cutout area above the I/O model number allows the model number of the adapter to show through.
NOTE: An option adapter may also be used in the assembled module. You will find its model number printed in the upper left corner of adapter housing.

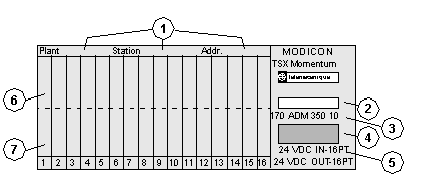

A fill-in label is illustrated in the illustration below.
1
fields for plant name, station name and network address
2
cutout: the model number of the adapter shows through
3
model number of the I/O base
4
color code of the I/O base
5
short description of the I/O base
6
field for the symbol name of inputs
7
field for the symbol name of outputs
