Parametering
The parameter assignments of the function block are made by defining the GAIN, the differentiator and the time constant LAG, by which the output Y is delayed.
For very short sampling times and a unit jump at the X input (input X jumps from 0 to 1.0), the output Y jumps to the GAIN value (in theory - in reality somewhat smaller, due to the sampling time not being infinitely small), and then returns to 0 with the delay time constant LAG.
Operating modes
The function block SMOOTH_RATE has 3 operating mode: Automatic, manual and halt.
The operating mode are selected via the inputs MAN and HALT:
Operating mode
MAN
HALT
Meaning
Automatic
0
0
The function block operates as described in "Parametering".
Manual mode
1
0 or 1
The input YMAN will be transferred directly to the output Y.
Halt
0
1
The output Y will be held at the last calculated value.
Example

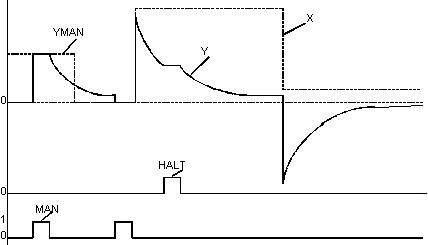

The following illustration shows the jump response of the function block SMOOTH_RATE when GAIN = 1 and LAG = 10 s:
