The following examples are presented in the following diagrams:
The function blocks behave like a pure multiplication block with the multiplier gain.

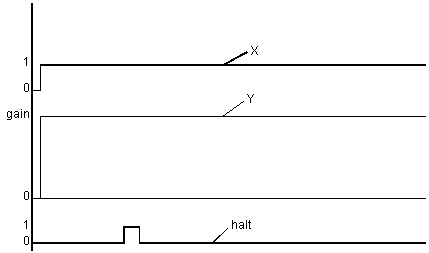

Function block LEAD_LAG with lead = lag
The output Y jumps in this case to half the end value in order to run into the end value with the delayed time constant lag (gain * X).

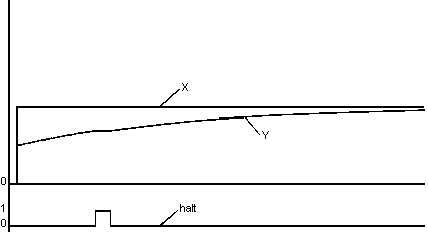

Function block LEAD_LAG with lead/lag = 0.5 and gain = 1
The output Y jumps in this case to twice the end value in order to run into the end value with the delayed time constant lag (gain * X).

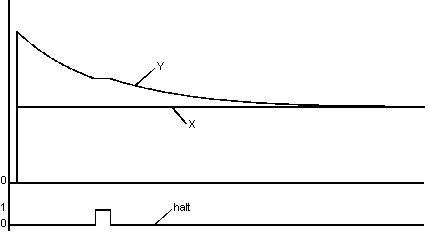

Function block LEAD_LAG with lead/lag = 2 and gain = 1
