Description

Function description

The function block produces an acceleration limiter of the 2nd order.

The function block individually contains the following properties:

Operating modes Manual, Halt, Automatic
Output limiting

NOTE: This function block performs an internal initialization in the first program cycle after a warm start or cold start (e.g. application download or power cycle) of the PLC program.

Due to this, you have to make sure that the function block is invoked in the first program cycle. In case of inkoving the function block in a later program cycle, the internal initialization will not be performed and the ouput may deliver a wrong value.

WARNING

UNEXPECTED OUTPUT BEHAVIOUR

Make sure that the function block is always invoked in the first program cycle.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

and can be configured as additional parameters.

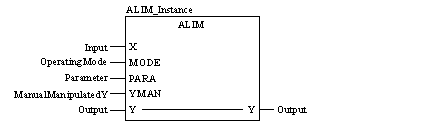

Representation in FBD

Representation:

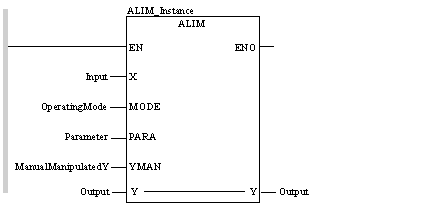

Representation in LD

Representation:

Representation in IL

Representation:

CAL ALIM_Instance (X:=Input, MODE:=OperatingMode,
    PARA:=Parameter, YMAN:=ManualManipulatedY, Y=Output)

Representation in ST

Representation:

ALIM_Instance (X:=Input, MODE:=OperatingMode,
    PARA:=Parameter, YMAN:=ManualManipulatedY, Y:=Output) ;

ALIM parameter description

Description of input parameters:

Parameter	Data type	Description
X	REAL	Input
MODE	Mode_MH	Operating mode
PARA	Para_ALIM	Parameter
YMAN	REAL	Manual value for output Y

Description of input / output parameters:

Parameter	Data type	Description
Y	REAL	Output

Parameter description Mode_MH

Data structure description:

Element	Data type	Description
man	BOOL	"1" = Manual operating mode
halt	BOOL	"1" = Halt mode

Parameter description Para_ALIM

Data structure description:

Element	Data type	Description
max_v	REAL	Maximum velocity (maximum x’) Unit: 1/[s]
max_a	REAL	Maximum acceleration (maximum x’’) Unit:

Runtime error

An error message is returned if

an invalid floating point number lies at input YMAN or X,
max_a or max_v ≤ is 0.

NOTE: For a list of all block error codes and values, see CLC_PRO.

REAL

The REAL type is encoded in a 32 bit format.

The possible value ranges are shown in the figure below:

When a result is:

between -1,175494e-38 and 1,175494e-38, it is considered to be a DEN;
less than -3.402824e+38, the symbol -INF (for - infinity) is displayed;
greater than +3.402824e+38, the symbol INF (for + infinity) is displayed;
undefined (square root of a negative number), the symbolNAN is displayed.

NOTE: The IEC 559 standard defines two classes of NAN: the silent NAN (QNAN) and the signaling NAN (SNAN). A QNAN is a NAN with a most significant fraction bit while an SNAN is a NAN without a most significant fraction bit (bit number 22). QNANs can be propagated via most arithmetic operations without throwing an exception. As for SNANs, they generally indicate n invalid operation when they are used as operands in arithmetic operations (see %SW17 and %S18).

NOTE: When a DEN (non-standardized number) is used as an operand, the result is not significant.
