Detailed description of the operation of the PL7_3_TIMER function
|
|
|
Original instructions
|
|

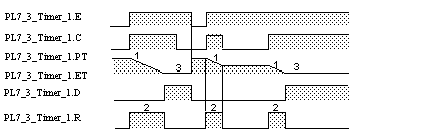

Detailed description of the operation of the PL7_3_TIMER function
|
|
|
Original instructions
|
|
E
|
0
|
0
|
1
|
1
|
|
C
|
0
|
1
|
0
|
1
|
|
PT
ET
|
ET = PT
|
ET = PT
|
ET frozen
|
ET decreases by PT to 0
|
|
D
|
0
|
1
|
0
|
1 if timer elapsed
|
|
R
|
0
|
1
|
0
|
1 if timer running
|
|
Phase
|
Description
|
|---|---|
|
1
|
The current value PL7_3_Timer_1.ET decreases from the preset PL7_3_Timer_1.PT towards 0, by one unit per base time pulse.
|
|
2
|
The output bit PL7_3_Timer_1.R (Timer running) is then at state 1, the output bit PL7_3_Timer_1.D (Timer elapsed) is at state 0.
|
|
3
|
When the current value PL7_3_Timer_1.ET = 0, PL7_3_Timer_1.D changes to state 1 and PL7_3_Timer_1.R resets to state 0.
|
