The WRITE_PCMCIA function transfers data from the PLC's RAM memory to the user memory card archiving zone. The function WRITE_U_PCMCIA enables to address the PLC zone's beginning to be copied to the PCMCIA card up to 65 535 (instead of 32 767 for WRITE_PCMCIA function) and is therefore recommended to be used instead of WRITE_PCMCIA function.
The additional parameters and can be configured.

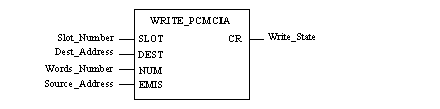

Representation:

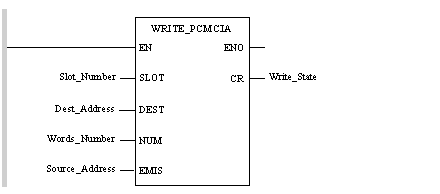

Representation:
Representation:
LD Slot_Number
WRITE_PCMCIA Dest_Address, Words_Number, Source_Address, Write_State
Representation:
WRITE_PCMCIA(Slot_Number, Dest_Address, Words_Number, Source_Address, Write_State);
Description of the parameters
The following table describes the input parameters:
|
Parameter
|
Type
|
Comment
|
|
Slot_Number
|
|
PCMCIA card slot:
-
0 = upper slot,
-
1 = lower slot
|
|
Dest_Address
|
|
First address where the data is written in the memory card.
|
|
Words_Number
|
|
Number of words to write.
|
|
Source_Address
|
|
First address where the data is read from the PLC (%MW). The upper limit of the address is: 32767.
|
The following table describes the output parameters:
|
Parameter
|
Type
|
Comment
|
|
Write_State
|
|
Code providing the result of the write command's execution:
-
16#0000: write performed correctly,
-
16#0102: Source_Address + Words_Number - 1 is greater than the maximum number of declared words in the PLC,
-
16#0104: no valid application or no word in the PLC,
-
16#0201: no file zone in the memory card,
-
16#0202: memory card error,
-
16#0204: memory card write-protected,
-
16#0241: Dest_Address < 0,
-
16#0242: Dest_Address + Words_Number-1 is greater than the highest address of the memory card,
-
16#0401: Words_Number = 0,
-
16#0402: Slot_Number is different from 0 and 1,
-
16#0501: unsupported service.
|
