Adding an RIO Drop Using the Standard Connected Mode
Original instructions
About us
Introduction
NOTICE
UNINTENDED EQUIPMENT OPERATION
  • Verify that the margin between watchdog timers and task execution times is great enough to handle the increased processing time required to support the CCOTF modification.
  • Anticipate performance decrease due to the increased traffic resulting from the new RIO drop in the system.
Failure to follow these instructions can result in equipment damage.
Adding an RIO Drop

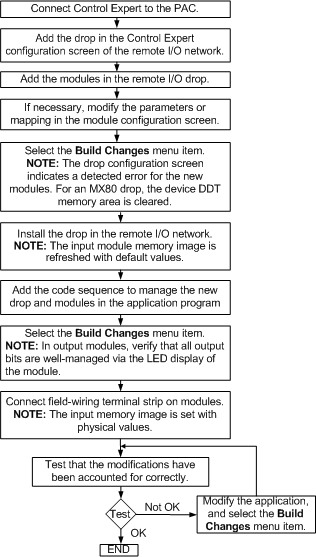

This describes the process of adding an RIO drop using the standard connected mode:
NOTE: An RIO drop contains 1 or 2 racks (linked with a backplane expander cable).
