Function description
The function block is used to edit the configuration data of a Quantum (main) module rack expansion for subsequent use by the scaling EFBs.
To configure a Quantum (main) module rack expansion, the XBE function block is inserted into the configuration section. It is connected to its INSLOT input at the corresponding SLOTx output of the QUANTUM function block. The function blocks for the configuration of analog modules or the DROP function block for the I/O station are connected at its SLOTx outputs.
NOTE: Do not specify Literals at the SLOT inputs of the configuration EFBs. SLOT inputs must be connected to SLOT outputs. Values in SLOT outputs are not supposed to be used directly by the user. They refer to configuration areas in the PLC memory associated to the configured modules. Invalid values will cause a runtime error message in menuTools → Diagnostic Viewer.
EN and ENO can be configured as additional parameters.

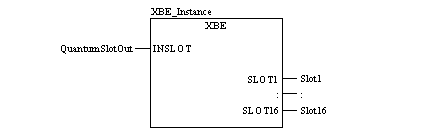

Representation in FBD
Representation:

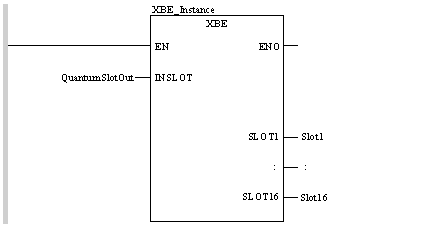

Representation in LD
Representation:
Representation in IL
Representation:
CAL XBE_Instance (INSLOT:=QuantumSlotOut,
    SLOT1=>Slot1, SLOT2=>Slot2, SLOT3=>Slot3, SLOT4=>Slot4,
    SLOT5=>Slot5, SLOT6=>Slot6, SLOT7=>Slot7, SLOT8=>Slot8,
    SLOT9=>Slot9, SLOT10=>Slot10, SLOT11=>Slot11,
    SLOT12=>Slot12, SLOT13=>Slot13, SLOT14=>Slot14,
    SLOT15=>Slot15, SLOT16=>Slot16)
Representation in ST
Representation:
XBE_Instance (INSLOT:=QuantumSlotOut,
    SLOT1=>Slot1, SLOT2=>Slot2, SLOT3=>Slot3, SLOT4=>Slot4,
    SLOT5=>Slot5, SLOT6=>Slot6, SLOT7=>Slot7, SLOT8=>Slot8,
    SLOT9=>Slot9, SLOT10=>Slot10, SLOT11=>Slot11,
    SLOT12=>Slot12, SLOT13=>Slot13, SLOT14=>Slot14,
    SLOT15=>Slot15, SLOT16=>Slot16) ;
Parameter description
Description of input parameters:
Parameter
Data type
Meaning
INSLOT
INT
140 XBE 100 00 slot in the central rack
Description of output parameters:
Parameter
Data type
Meaning
SLOT1
INT
Slot 1
:
:
:
SLOT16
INT
Slot 16
Runtime error
For a list of all block error codes and values, seeQuantum I/O Configuration.
