ARI030: Configuring the Quantum module ARI 030 10

Original instructions

Function description

The function block is used to edit the configuration data of an ARI 030 10 Quantum module for subsequent use by the scaling EFBs.

This module has 8 resistor temperature sensor input channels (RTD) for the processing of four-wire RTD sensors.

For the configuration of an ARI 030 10 the function block in the configuration section is connected to the corresponding SLOT output of the QUANTUM or DROP function block. The references specified in the I/O map are automatically assigned internally to the individual channels and can therefore only be occupied by Unlocated variables.

The analog values can be further processed in Scaling sections using the I_NORM, I_NORM_WARN, I_PHYS, I_PHYS_WARN and I_RAW function blocks.

and can be configured as additional parameters.

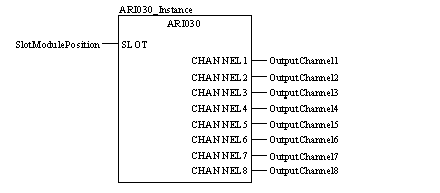

Representation in FBD

Representation:

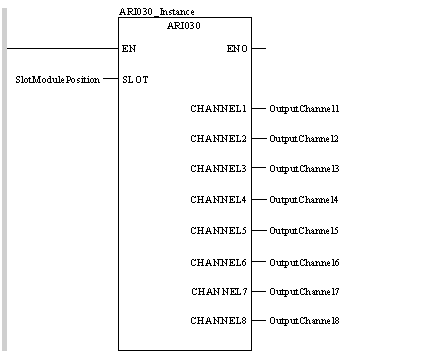

Representation in LD

Representation:

Representation in IL

Representation:

CAL ARI030_Instance (SLOT:=SlotModulePosition,
    CHANNEL1=>InputChannel1, CHANNEL2=>InputChannel2,
    CHANNEL3=>InputChannel3, CHANNEL4=>InputChannel4,
    CHANNEL5=>InputChannel5, CHANNEL6=>InputChannel6,
    CHANNEL7=>InputChannel7, CHANNEL8=>InputChannel8)

Representation in ST

Representation:

ARI030_Instance (SLOT:=SlotModulePosition,
    CHANNEL1=>InputChannel1, CHANNEL2=>InputChannel2,
    CHANNEL3=>InputChannel3, CHANNEL4=>InputChannel4,
    CHANNEL5=>InputChannel5, CHANNEL6=>InputChannel6,
    CHANNEL7=>InputChannel7, CHANNEL8=>InputChannel8) ;

Parameter description

Description of input parameters:

Parameter	Data type	Meaning
SLOT	INT	Module slot

Description of output parameters:

Parameter	Data type	Meaning
CHANNEL1	ANL_IN	Channel 1
CHANNEL2	ANL IN	Channel 2
CHANNEL3	ANL IN	Channel 3
CHANNEL4	ANL IN	Channel 4
CHANNEL5	ANL IN	Channel 5
CHANNEL6	ANL IN	Channel 6
CHANNEL7	ANL IN	Channel 7
CHANNEL8	ANL IN	Channel 8

Runtime error

If no ACI 030 10 module has been configured for the specified SLOT input, an error message is returned.

The range warning for the channels can be evaluated through the I_NORM_WARN or I_PHYS_WARN function block.

The status message "Open circuit or range violation on channel" can be requested via the status register defined in the I/O map.

NOTE: For a list of all block error codes and values, seeQuantum I/O Configuration.

%IW

According to the CEI standard, %IW indicates a language object of type analog IN.

EN stands for ENable; it is an optional block input. When the EN input is enabled, an ENO output is set automatically.

If EN = 0, the block is not enabled; its internal program is not executed, and ENO is set to 0.

If EN = 1, the block's internal program is run and ENO is set to 1. If an error occurs, ENO is set to 0.

If the EN input is not connected, it is set automatically to 1.

ENO

ENO stands for Error NOtification; this is the output associated with the optional input EN.

If ENO is set to 0 (because EN = 0 or in case of an execution error):

the status of the function block outputs remains the same as it was during the previous scanning cycle that executed correctly;
the output(s) of the function, as well as the procedures, are set to "0".

INT

INT is the abbreviation of single INTeger (encoded in 16 bits).

The upper/lower limits are as follows: -(2 to the power of 15) to (2 to the power of 15) - 1.

Example:

-32768, 32767, 2#1111110001001001, 16#9FA4.

ANL_IN

ANL_IN is an internal data type that is used between Quantum specific FFBs. For instance, an ACI040 FFB provides the channels structures of the module as ANL_IN types, which are used as input of an I_FILTER FFB. This data type must not be used outside the Quantum specific FFBs.

Elements of the DDT:

Name	Type	Comment
valuePtr	UDINT	3x or 4x raw value register
rawControl	BYTE	Control Byte(internal use only)
rawSpecific	BYTE	Specific Byte (internal use only)
offset	INT	Offset Value
range	WORD	Input range (resolution)
channel	BYTE	Input Channel number
statusMode	BYTE	Status Mode (internal use only)
statusPtr	UDINT	Identifies high byte or low byte of status register
warnCode	BYTE	Warning Code (internal use only)
