B875-111 Parameter Configuration
(Original Document)
About us
Parameter and Default Values

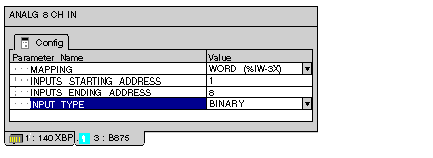

Parameter configuration window
Module configuration
Parameter Name
Default Value
Value (Options Available)
Mapping
WORD (%IW-3X)
-
Inputs Starting Address
1
-
Inputs Ending Address
8
-
Input Type
BINARY
BCD
Mapping parameter references
Modsoft, Concept, ProWORX
Control Expert
Reference Type
Mapped as 8 registers input
3x
Mapped as 8 words input
%IWx
Input Type
BIN/BCD
BIN/BCD
