B872-200 Parameter Configuration
(Original Document)
About us
Parameter and Default Values

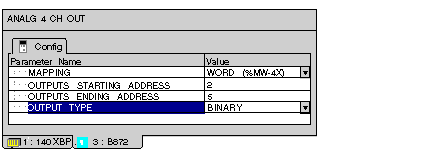

Parameter configuration window
Module configuration
Parameter Name
Default Value
Value (Options Available)
Mapping
WORD (%MW-4X)
-
Outputs Starting Address
2
-
Outputs Ending Address
5
-
Output Type
BINARY
BCD
Mapping parameter references
Modsoft, Concept, ProWORX
Control Expert
Reference Type
Mapped as 4 registers output
4x
Mapped as 4 words output
%MWx
Output Type
BIN/BCD
BIN/BCD
