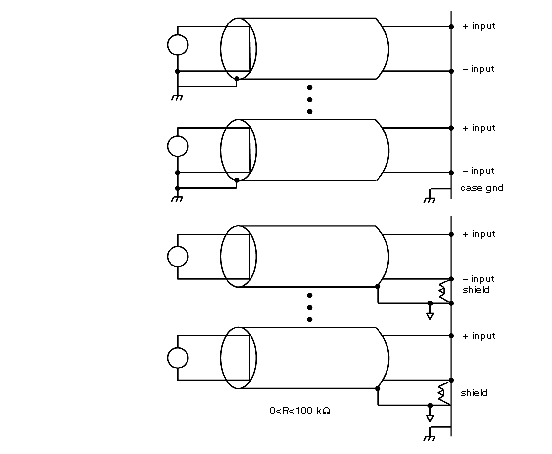

The following illustration shows typical field circuitry connected to the field connector.
NOTE: Shields 1—8 are tied together internally and also to field side ground within the module. For grounded sources, a jumper to case ground must be externally supplied by the user.
