User connections are made to a standard screw terminal strip, and the rigid wiring system permits module insertion or removal without disturbing the wiring.
B873-012 Terminal Numbering and Wire Connections

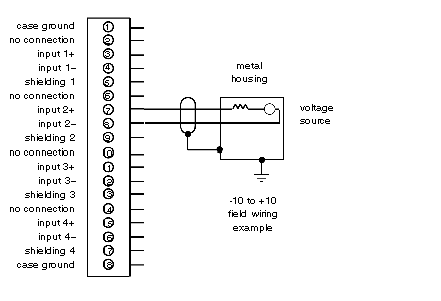

B873-012 terminal numbering and corresponding input functions are presented in the figure below.
B875-012 terminal numbering and corresponding input functions are presented in the figure below.
