User connections are made to a standard screw terminal strip.The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Output Connections

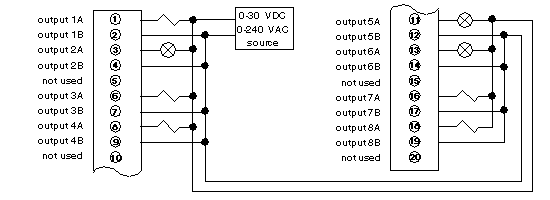

The following diagram shows typical circuit connections for power applications of the B814–108 module.
NOTE: Since each output is isolated from the remaining outputs, separate power sources can be used for each load. Each output can be wired for current source or current sink operations.
NOTE: It is possible to have the Active indicator lit with one or more output channels working improperly.
