User connections are made to a standard screw terminal strip.The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Input Connections

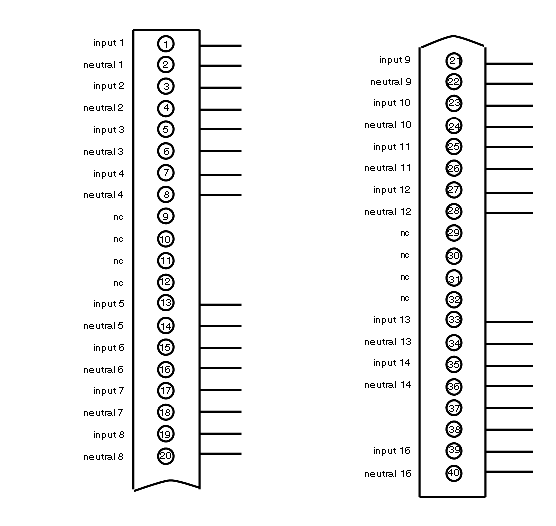

The following diagram shows terminal numbering and input connections for the B817–116 (115 Vac) and B817–216 (230 Vac) isolated input modules.

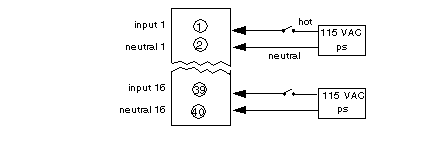

The following figure shows typical circuitry connected to the user side of the B817–116 field connector.

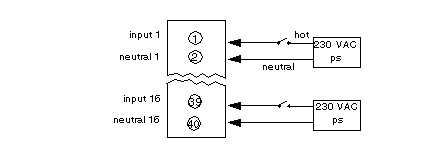

The following figure shows typical circuitry connected to the user side of the B817–216 field connector.
