B820–008 10—60 Vdc Output, Field Connections
(Original Document)
Overview
User connections are made to a standard screw terminal strip.The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Output Connections

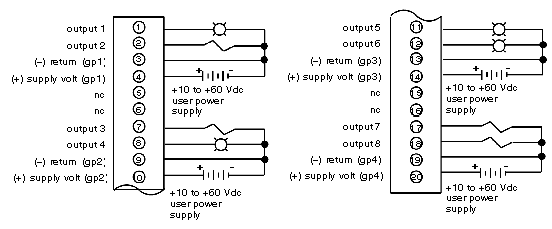

The following diagram shows terminal numbering and output connections for the B820–008 module.
