User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.
Terminal Numbering and Output Connections

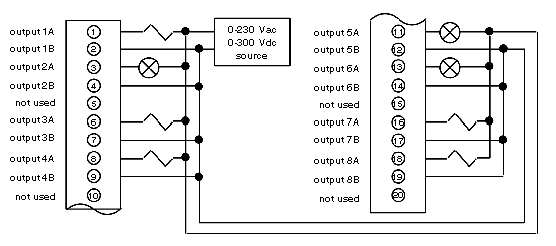

The following diagram shows terminal numbering and output connections for the B840–108 relay output module.
NOTE: Since each output is isolated from the remaining outputs, separate power sources can be used for each load. Each output can be wired for current source or current sink operation.
NOTE: It is possible to have the active indicator lit when one or more output channels are working improperly
