User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.

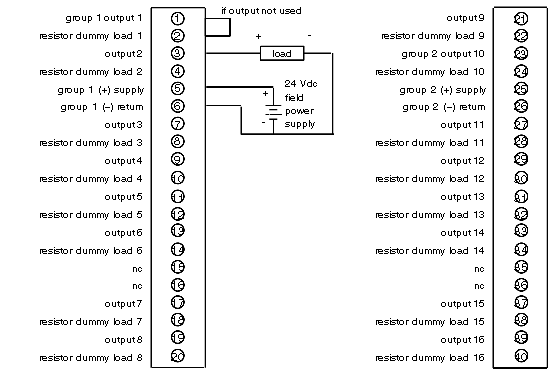

The following illustration shows the B882–116 terminal numbering and output connections
NOTE: The dummy load pin is only used to prevent an open circuit fault from being returned from an unused output.
