B881–001 Latched 24 Vdc Input, Field Connections
(Original Document)
About us
Terminal Numbering and Input Functions
User connections are made to a standard screw terminal strip. The rigid wiring system permits module insertion or removal without disturbing the wiring.

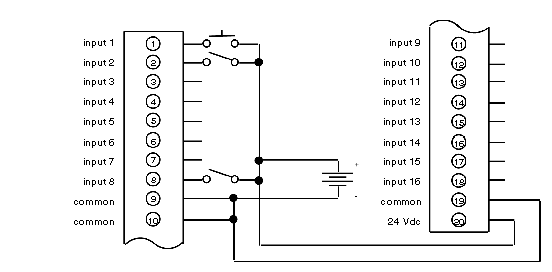

The following illustration shows the field connections for the unit.
