Bits in the Firmware Mismatch Register (%SW69)
The Hot Standby Firmware Mismatch Register, %SW69, gives information about the firmware levels in the Primary and Standby main rack components:
-
The firmware levels in the Primary and Standby CPUs, Copros and Ethernet CRPs are compared:
-
If a bit = 0, the Primary and Standby components have the same firmware versions.
-
If a bit = 1, the Primary and Standby components have different firmware versions.
-

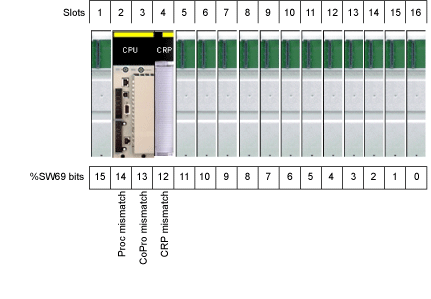

Bits 0 to 15 correspond to rack positions 16 to 1:
