Dimensions of X80 HART Analog I/O Modules

General Presentation of X80 HART Analog I/O Modules

DIN-rail depth: the value depends on the DIN-rail type used in your platform.

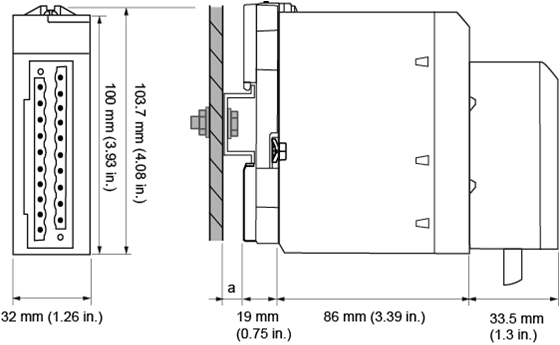

Dimensions of X80 HART Analog Modules

Module reference	Module dimensions			Installation depth(1)
Module reference	Width	Height	Depth	Installation depth(1)
BMEAHI0812(H)	32 mm (1.26 in.)	103.7 mm (4.08 in.)	86 mm (3.39 in.)	119.5 mm (4.69 in.)(1)
BMEAHO0412(C)	32 mm (1.26 in.)	103.7 mm (4.08 in.)	86 mm (3.39 in.)	119.5 mm (4.69 in.)(1)
(1) DIN-rail depth (a) is not included.

NOTE: Connectors that are delivered with the X80 HART Analog I/O modules (20-pin removable terminal blocks) and the corresponding pre-assembled cordsets (BMXFTW*01S) have the same dimensions.

NOTE: Consider clearance for cable installation and spacing around the racks.
