BMX FTW •01S Cable

Introduction

20-pin connector modules are connected to sensors, pre-actuators or terminals using a cable designed to enable direct wire to wire transition of the module’s inputs/outputs.

WARNING

UNEXPECTED EQUIPMENT OPERATION

Use only a connector that is designed for a specific module. Plugging the wrong connector can cause an unexpected behavior of the application.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

Cable Description

The BMX FTW •01S cables are pre-assembled cord set, made up of:

At one end, a compound-filled 20-pin terminal block from which extend 1 cable sheath containing 20 wires,
At the other end, free wire ends differentiated by color code.

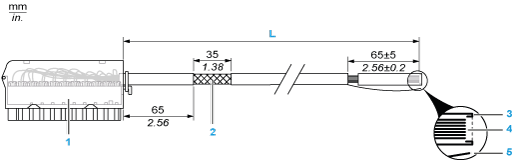

The figure below shows the BMX FTW •01S cables:

BMX FTB 2020 Terminal block

Cable shielding

First of external sheath

Wires not stripped

Strand of nylon allowing the cable sheath to be stripped easily.

Length according to the part number.

The cable comes in 2 different lengths:

3 m (9.84 ft): BMX FTW 301S;
5 m (16.40 ft): BMX FTW 501S;

Pin Assignment

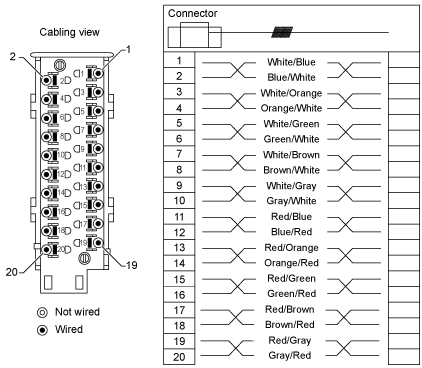

The diagram below shows the connection of BMX FTW •01S cable:

Characteristics

The following table gives the characteristics of the BMX FTW •01S cables:

Characteristic		Value
Cable	Sheath material	PVC
Cable	LSZH status	No
Conductor description	Number of conductors	20
Conductor description	Conductor cross section (Gauge)	0.34 mm2 (22 AWG)
Environmental	Operating temperature	-25...70 °C (-13...158 °F)
Applicable standards		DIN47100

Cable Installation

DANGER

HAZARD OF ELECTRIC SHOCK

Turn off all power to sensor and pre-actuator devices before connection or disconnection of the terminal block.

Failure to follow these instructions will result in death or serious injury.

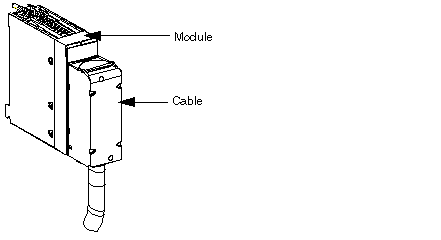

The following diagram shows the pre-assembled cable connected to the module:

For more detailed information, refer to the topic Fitting a 20-pin Terminal Block to a Module.
