At a Glance
Use this function to modify the forcing, fallback, and alignment values for one or several output channels of an analog module.
The available commands include:
Procedure
To modify the values to be applied at the output channels, follow these steps:
Step
Action for a Channel
1
Access the Debug tab.
2
Select the channel in the display zone and double-click in the corresponding box.

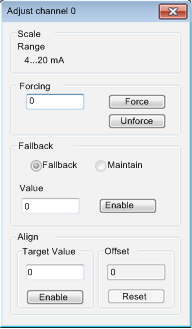

Result: The Adjust channel dialog box appears.
3
Place the cursor in the Forcing field. Enter the forcing value. Send the forcing order by clicking the Force button.
4
Place the cursor in the Value field and enter the new fallback value.
Confirm this new value by clicking Enable.
5
In the Align area, place the cursor in the Target Value field, and then input a target value. Confirm this selection by clicking Enable.
6
Close the dialog.
