Ethernet communication essentially targets applications of:
-
coordination between PLCs
-
local or centralized monitoring
-
communication with the production management information system
-
communication with remote inputs/outputs
Acting as an agent, Ethernet communication also supports management of the network monitoring standard SNMP.

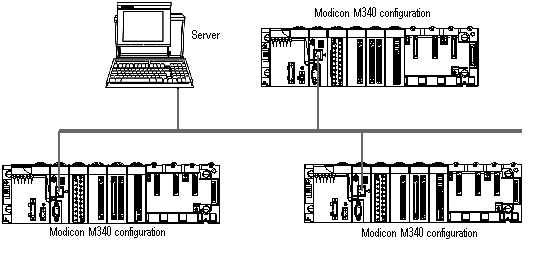

The following illustration shows an Ethernet network:
