Description of TSX SUP 1101 supply module
(Original Document)
Illustration

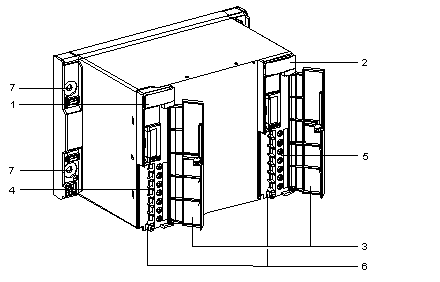

Diagram and item numbers:
Number table
The following table provides descriptions for the items numbered in the above diagram:
Numbers
Description
1
Display panel featuring an ON LED (orange): lit if power supply on.
2
Display panel featuring a 24 V (green) LED, lit if the 24 V DC output voltage is correct.
3
Flap for protecting terminal blocks.
4
Screw terminal block for connection to the AC power supply network.
5
Screw terminal block for connecting the 24 V DC output voltage.
6
Holes for a cable-tightening clip to go through.
7
Four attaching holes to receive M6 screws.
