General Points
The choice of the TSX PCI 204/354 processor type defines the maximum capacities of an Atrium PLC station.
This type of station, with the processor integrated in a PC, will be controlled with extendable racks.
Station TSX PCI 57 204

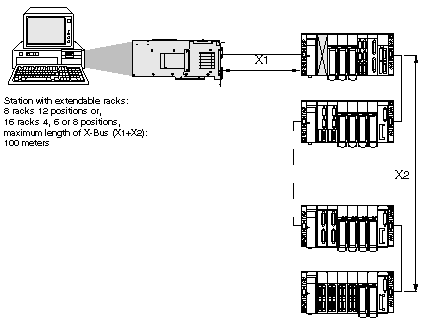

Without X-Bus extension module:

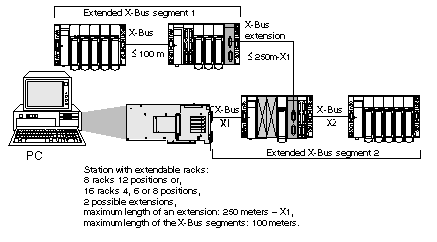

With X-Bus extension module:
Station TSX PCI 57 354
Without X-Bus extension module:

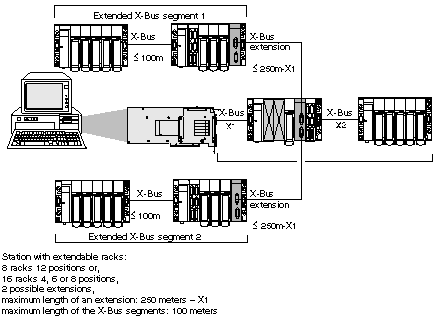

With X-Bus extension module:
