The choice of rack and processor type defines the maximum capacities of a Premium PLC station.
TSX P57 stations are composed of TSX P57 104/1634/154/0244 processors and TSX P57 204/254/2634/2834/304/354/3634/454/4634/554/5634/6634.
TSX H57 stations are composed of TSX H57 24M and TSX H57 44M.

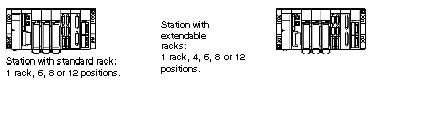

TSX P57 0244 processor in simple version with the CANopen TSX CPP 110 card:
TSX P57 0244 processor in configuration version:

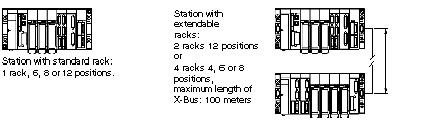

Without X-Bus extension module:

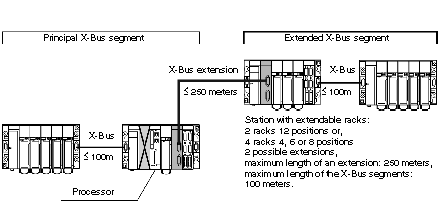

With X-Bus extension module:
TSX 57 20/30/40/50/60 station

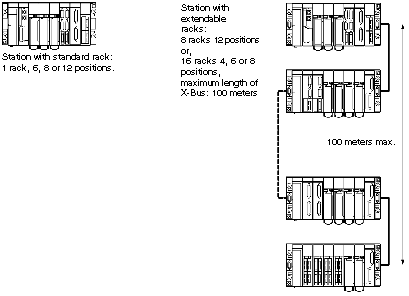

Without X-Bus extension module:

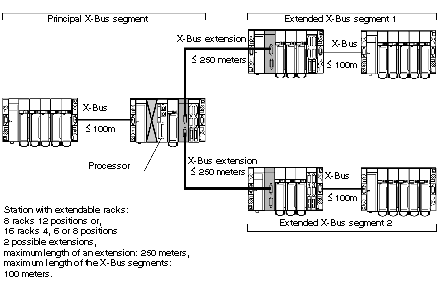

With X-Bus extension module:

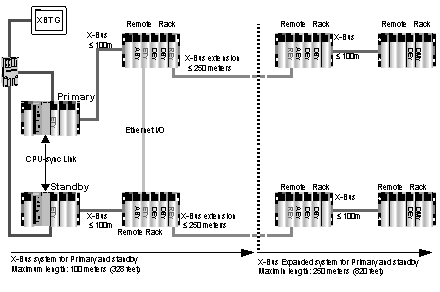

With X-Bus extension module:
