General introduction to TSX CTY/CCY counting modules
(Original Document)
About us
General points
Premium and Atrium PLCs offer main counting functions (down-counting, up-counting, up/down counting) from the application-specific "counting" modules.
Three modules are offered:
a 2-channel module and a 4-channel module for the incremental encoder, with a maximum reading frequency of 40 kHz,
a 2-channel module for:
incremental encoder, with a maximum reading frequency of 500 kHz,
absolute SSI series encoder, with a maximum reading frequency of 2 MHz.
Illustration

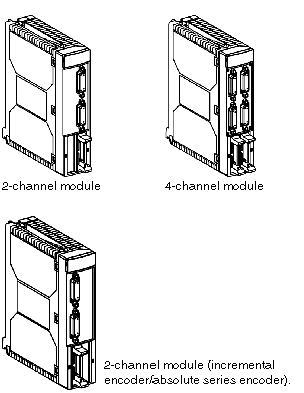

Illustration of different types of TSX CTY/CCY counting modules:
