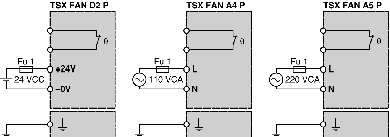

Connection of the Ventilation Module Power Supply
Illustration:
NOTE: When using several ventilation modules of the same type, use a common power supply for all the ventilation modules.

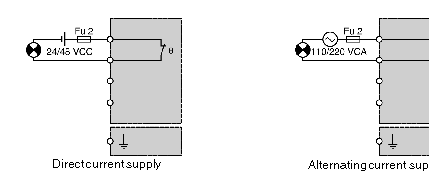

Connection of the Temperature Probe Power Supply
The Temperature probe may be supplied either by a direct current or alternating current and be connected to a LED indicator, a PLC input, etc. .
Diagram:

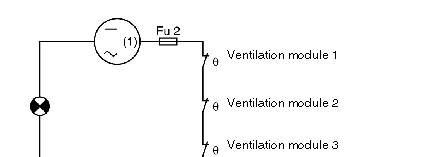

NOTE: When using several ventilation modules, the probe contacts shall be serialized.
Illustration:
(1) direct 24/28 V or alternating 110/220 V
