Ventilation module: dimensions
(Original Document)
About us

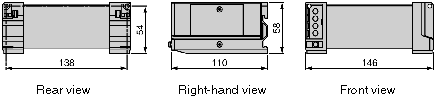

Ventilation module alone
Illustrative diagram (dimensions in millimeters):

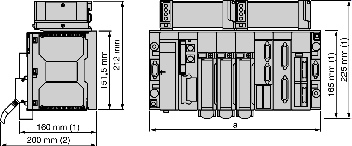

Ventilation module + rack
Illustrative diagram (dimensions in millimeters):
(1) with screw terminal block module,
(2) maximum depth for all types of modules and their associated connectors.
Characteristics table:
Racks
Number of positions
a
TSX RKY 4EX
4
187.9 mm
TSX RKY 6/6EX
6
261.6 mm
TSX RKY 8/8EX
8
335.3 mm
TSX RKY 12/12EX
12
482.6 mm
