When the module is in place on the rack, it masks the address of the position, which is printed on the rack.

Due to this and in order to be able to identify the module’s position quickly, each rack is delivered with a page of sticky labels which allow you to label the position of each module.

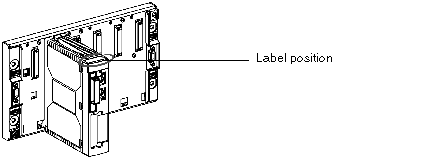

This sticky label is stuck on the upper part of the module when it is in place on the rack.

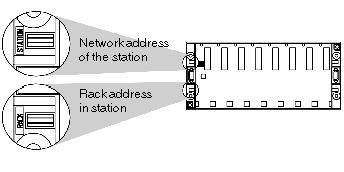

Each rack is delivered with a set of snap out labels so that for each rack you can label:

Therefore each rack has two slots where these addresses can be placed.
