Overview

The final task in this example is to add I/O items to the configuration of the STB NIC 2212 and its eitht I/O modules:

  • Use the Advantys configuration software to identify the relative position of each I/O module’s inputs and outputs.

  • Use the Control Expert Device Editor to create input and output items, defining each item’s:

    • name

    • data type

I/O Item Types and Sizes

The goal is to create a collection of input items and output items that equal the input size and output size specified for the STB NIC 2212. In this example, items need to be created for:

  • 19 bytes of inputs

  • 6 bytes of outputs

The Control Expert Device Editor provides great flexibility in creating input and output items. You can create input and output items in groups of 1 or more single bits, 8-bit bytes, 16-bit words, 32-bit dwords, or 32-bit IEEE floating values. The number of items you create depends upon the data type and size of each item.

In the sample project, the following items were created:

  • discrete bits for digital inputs and outputs

  • 8-bit bytes or 16-bit words for analog inputs and outputs

Mapping Input and Output Items

Use the Fieldbus Image page of the I/O Image Overview window in the Advantys configuration software to identify the number and type of I/O items you need to create, as follows:

Step

Action

1

In the Advantys configuration software, select Island → I/O Image Overview. The I/O Image window opens to the Fieldbus Image page.

2

Select the first cell (word 1, cell 0) in the Input Data table to display (in the middle of the page) a description of the cell data and its source module.

3

Make a note of the word, bit(s), module and item information for that cell.

4

Repeat steps 2 and 3 for each cell containing either an S or an integer.
NOTE: The Fieldbus Image presents input and output data in the form of 16-bit words (starting with word 1). You need to rearrange this data for the Control Expert Ethernet Configuration Tool, which presents the same data in the form of 8-bit bytes (starting with byte 0).
NOTE: When you create items, align items of data type WORD and DWORD:

  • WORD items: align these items on a 16-bit boundary

  • DWORD items: align these items on a 32-bit boundary.

This process yields the following tables of input and output data:

Input Data:

Advantys Fieldbus Image

Control Expert EIP Items

STB Module

Description

Word

Bit(s)

Byte

Bit(s)

1

0-15

0

0-7

NIC 2212

low byte status

1

0-7

high byte status

2

0-1

2

0-1

DDI 3230

input data

2-3

2-3

DDI 3230

input status

4-5

4-5

DDO 3200

output data echo

6-7

6-7

DDO 3200

output status

8-11

3

0-3

DDI 3420

input data

12-15

4-7

DDI 3420

input status

3

0-3

4

0-3

DDO 3410

output data echo

4-7

4-7

DDO 3410

output status

8-13

5

0-5

DDI 3610

input data

14-15

6-7

NA

not used

4

0-5

6

0-5

DDI 3610

input status

6-7

6-7

NA

not used

8-13

7

0-5

DDO 3600

output data echo

14-15

6-7

NA

not used

5

0-5

8

0-5

DDO 3600

output status

6-15

8

6-7

NA

not used

9

0-7

6

0-15

10

0-7

AVI 1270

input data ch 1

11

0-7

7

0-7

12

0-7

AVI 1270

input status ch 1

8-15

13

0-7

NA

not used

8

0-15

14

0-7

AVI 1270

input data ch 2

15

0-7

9

0-7

16

0-7

AVI 1270

input status ch 2

8-15

17

0-7

AVO 1250

output status ch 1

10

0-7

18

0-7

AVO 1250

output status ch 2

8-15

NA

NA

NA

not used

Output Data:

Advantys Fieldbus Image

Control Expert EIP Items

Module

Description

Word

Bit(s)

Byte

Bit(s)

1

0-1

0

0-1

DDO 3200

output data

2-5

2-5

DDO 3410

output data

6-7

6-7

NA

not used

8-13

1

0-5

DDO 3600

output data

14-15

6-7

NA

not used

2

0-15

2

0-7

AVO 1250

output data ch 1

3

0-7

3

0-15

4

0-7

AVO 1250

output data ch 2

5

0-7

This example shows you how to create 19 bytes of inputs and 6 bytes of outputs. To efficiently use space, this example creates items in the following sequence:

  • input bit items

  • input byte and word items

  • output bit items

  • output byte and word items

Creating Input Bit Items

To create input bit items for the STB NIC 2212 example, beginning with 16 discrete inputs for NIC 2212 status:

Step

Action

1

In the DTM Browser, select the DTM for the BMENOC0301/11.

2

Do one of the following:

  • in the main menu, select Edit > Open.

    — or —

  • Right-click and select Open in the pop-up menu.

Result: The Device Editor opens, displaying the CPU DTM.

3

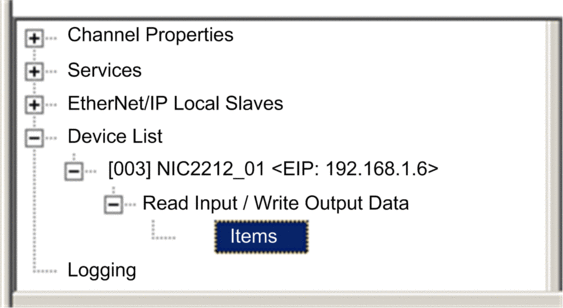

In the left pane of the Device Editor , navigate to and select the Items node for the STB NIC 2212 network interface module:

4

The Items window opens:

5

Select the Input (bit) tab to display that page.

6

In the Input (bit) page, type the following default root name (representing device status) into the Default Items Name Root input box type: DDI3232_in_data.

7

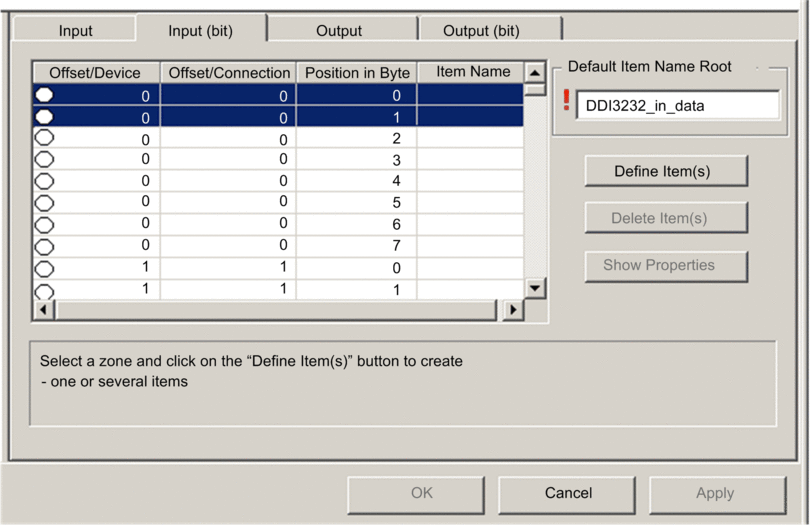

In the Items List , select the first 2 rows in the table. (These rows represent bits 0-1 in byte.)

8

Click the Define Item(s) button.

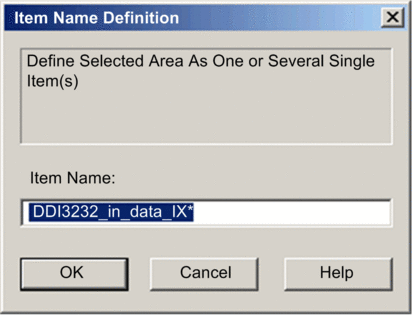

Result: The Item Name Definition dialog opens:

NOTE: The asterisk (*) indicates that a series of discrete items with the same root name will be created.

9

Accept the default Item Name, and click OK.

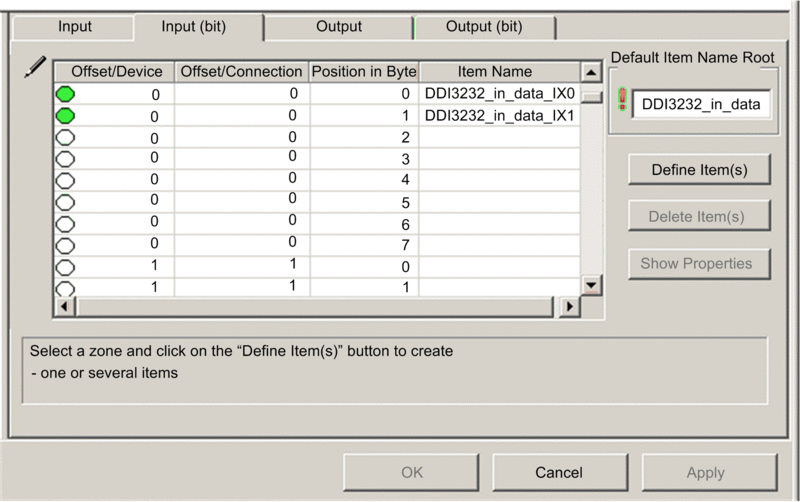

Result: 2 discrete input items are created:

10

Click Apply to save the items and leave the page open.

11

Repeat steps 6 - 10 for each group of discrete input items you need to create. In this example, that includes items for each of the following groups:

  • Byte: 0, Bits: 2-3, Default Items Name Root: DDI3230_in_st

  • Byte: 0, Bits: 4-5, Default Items Name Root: DDO3200_out_echo

  • Byte: 0, Bits: 6-7, Default Items Name Root: DDO3200_out_st

  • Byte: 1, Bits: 0-3, Default Items Name Root: DDI3420_in_data

  • Byte: 1, Bits: 4-7, Default Items Name Root: DDI3420_in_st

  • Byte: 2, Bits: 0-3, Default Items Name Root: DDO3410_out_echo

  • Byte: 2, Bits: 4-7, Default Items Name Root: DDO3410_out_st

  • Byte: 3, Bits: 0-5, Default Items Name Root: DDI3610_in_data

  • Byte: 4, Bits: 0-5, Default Items Name Root: DDI3610_in_st

  • Byte: 5, Bits: 0-5, Default Items Name Root: DDO3600_out_echo

  • Byte: 6, Bits: 0-5, Default Items Name Root: DDO3600_out_st

12

The next task is to create input bytes and words.

Creating Input Items

To create input items for the STB NIC 2212 example, begin with an input data byte containing low byte status for the STB NIC 2212 module:

Step

Action

1

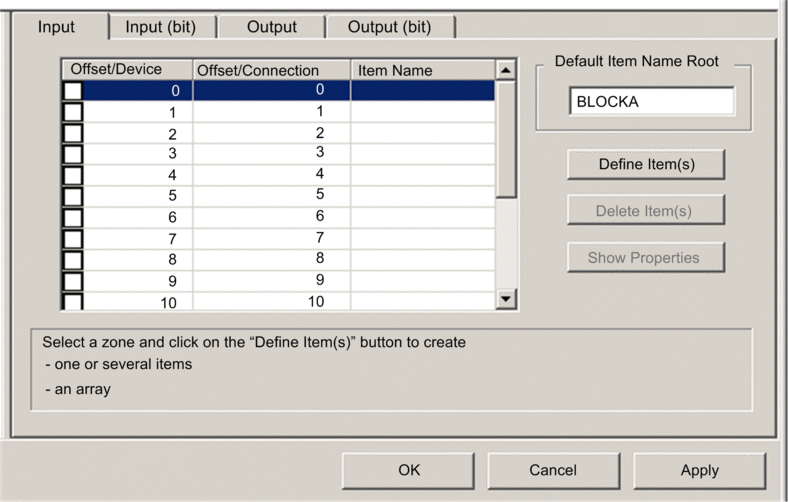

Select the Input tab to return to that page:

NOTE: In this example, both the Offset/Device and Offset/Connection columns represent the byte address. The items you create will be either an 8-bit byte or a 16-bit word

2

In the Default Item Name Root input box type: NIC22212_01_LO_st.

3

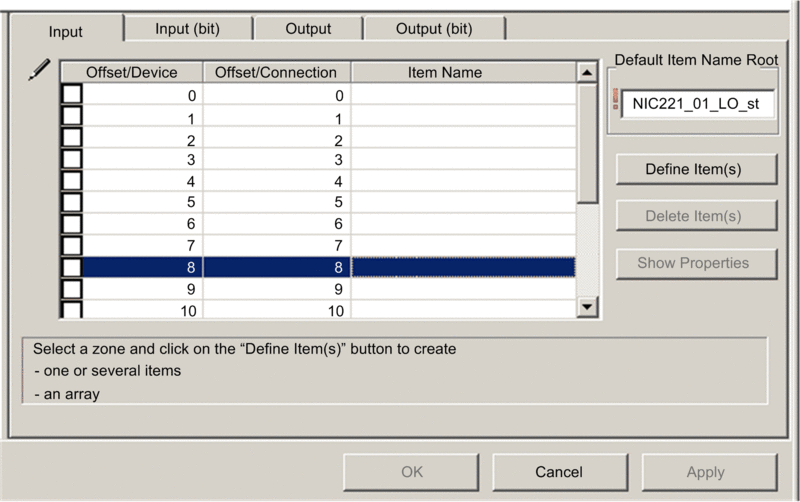

Starting at the first available whole input word, select the single row at byte 8:

4

Click the Define Item(s) button.

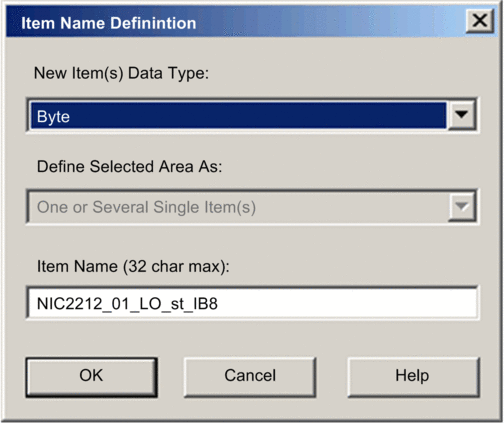

Result: The Item Name Definition dialog opens:

5

Select Byte as the New Item(s) Data Type, then click OK.

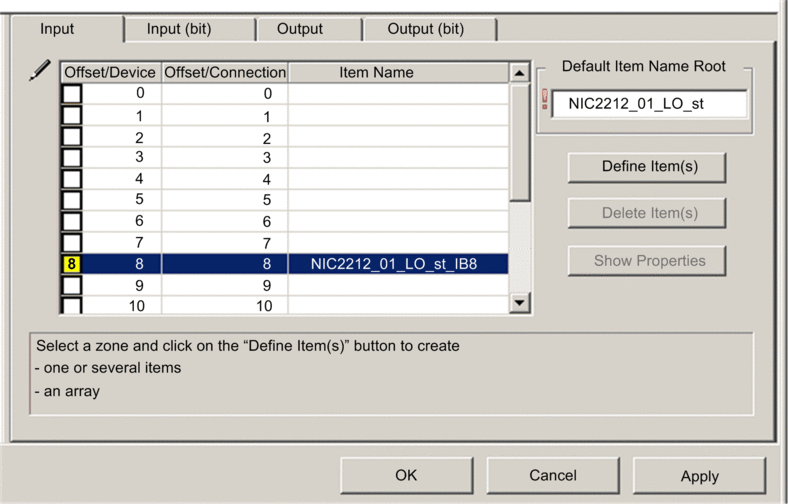

Result: A new byte item is created:

6

Click Apply to save the new items and leave the page open.

7

Repeat steps 2 - 6 for each byte or word input item you need to create.

NOTE: The number of rows you select for a new item depends upon the item type. If the item is a:

  • byte: select a single row

  • word: select two rows, beginning at the next available whole word

In this example, you will create items for each of the following:

  • Byte: 9, Default Items Name Root: NIC2212_01_HI_st

  • Word: 10, Default Items Name Root: AVI1270_CH1_in_data

  • Byte: 12, Default Items Name Root: AVI1270_CH1_in_st

  • Word: 14-15, Default Items Name Root: AVI1270_CH2_in_data

  • Byte: 16, Default Items Name Root: AVI1270_CH2_in_st

  • Byte: 17, Default Items Name Root: AVO1250_CH1_out_st

  • Byte: 18, Default Items Name Root: AVO1250_CH2_out_st

8

The next task is to create output bits.

Creating Output Bit Items

To create output bit items for the STB NIC 2212 example, beginning with 2 output bits for the STB DDO3200 module:

Step

Action

1

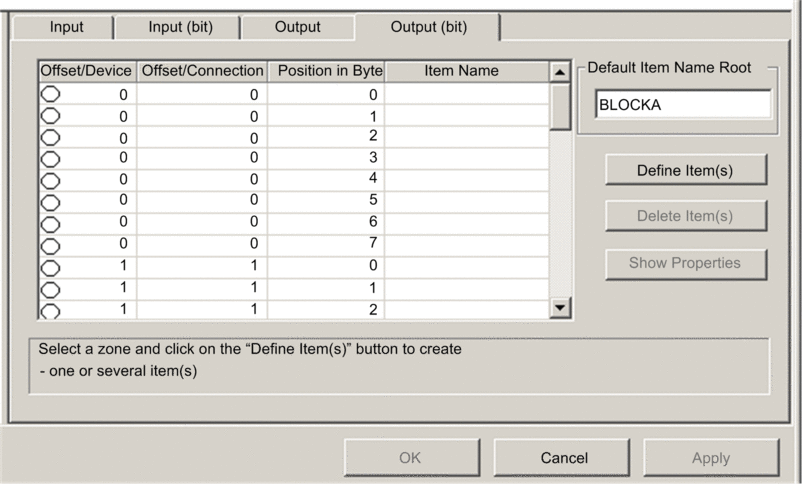

Select the Output (bit) tab to open the following page:

NOTE: Both the Offset/Device and Offset/Connection columns represent the byte address of an output, while the Position in Byte column indicates the bit position (within the byte) of each discrete output item.

2

In the Default Items Name Root input box type: DDO3200_out_data.

3

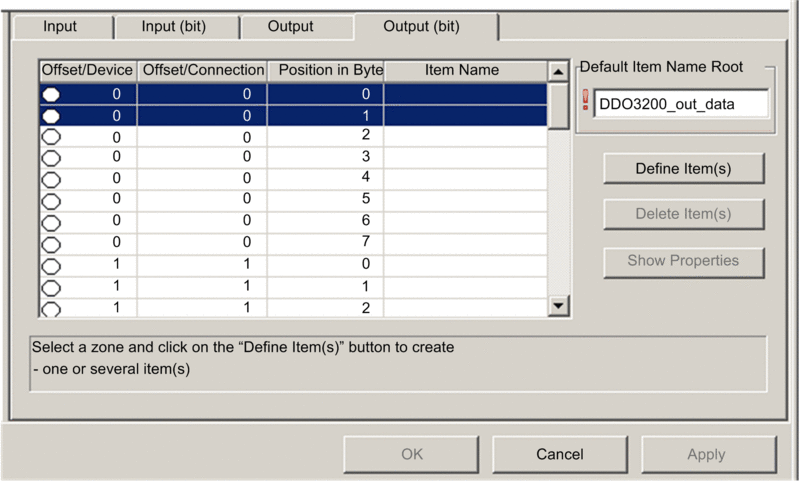

In the Items List, select the rows that correspond to bits 0-1 in byte 0—i.e., the first 2 rows:

4

Click the Define Item(s) button.

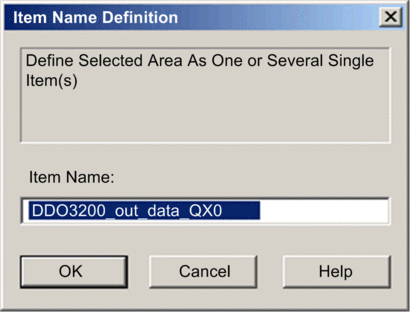

Result: The Item Name Definition dialog opens:

NOTE: The asterisk (*) indicates that a series of discrete items with the same root name will be created.

5

Accept the default output name and click OK.

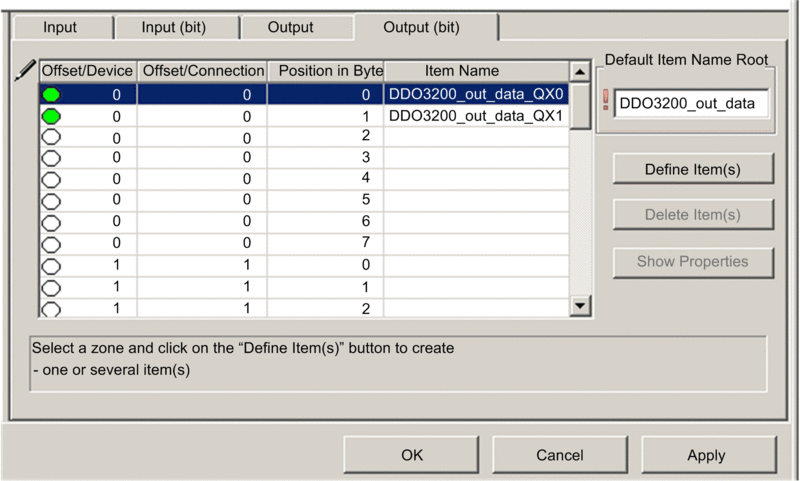

Result: 2 discrete output items are created:

6

Click Apply to save the new items and leave the page open.

7

Repeat steps 2 - 6 for each group of discrete output items you need to create. In this example, that includes items for each of the following groups:

  • Byte: 0, Bits: 2-5, Default Items Name Root: DDO3410_out_data

  • Byte: 1, Bits: 0-5, Default Items Name Root: DDO3600_out_data

8

The next task is to create output bytes and words.

Creating Numeric Output Items

To create output items for the STB NIC 2212, example, beginning with an output data word for the STB AVO 1250 module:

Step

Action

1

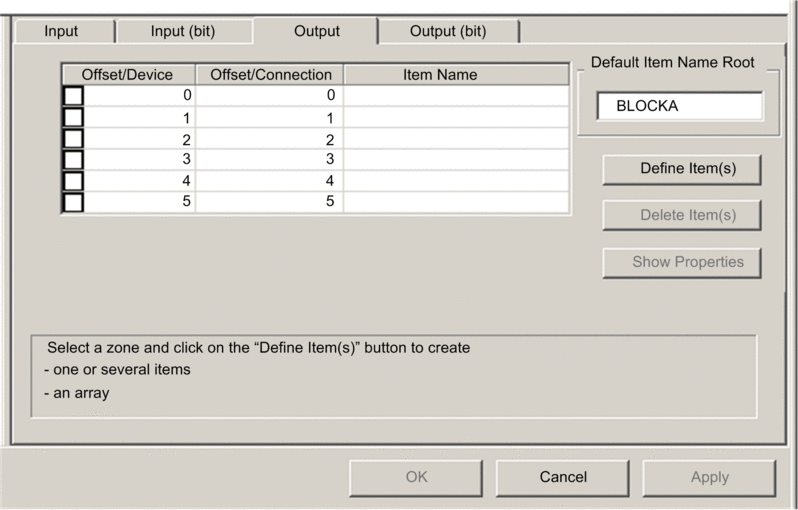

Click on the Output tab to open the following page:

NOTE: In this example, both the Offset/Device and Offset/Connection columns represent the byte address. The items you create will be 16-bit words comprising 2 bytes.

2

In the Default Item Name Root input box type: AVO1250_CH1_out_data.

3

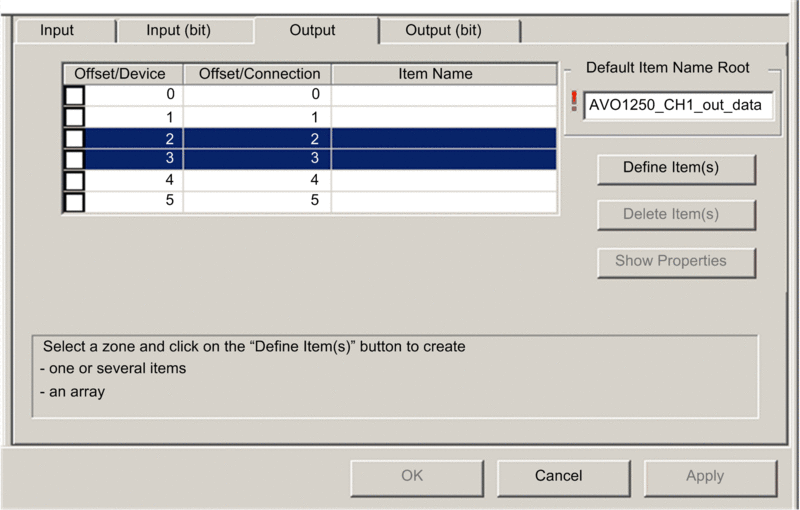

Starting at the next available whole word, select 2 rows: 2 and 3:

4

Click the Define Item(s) button.

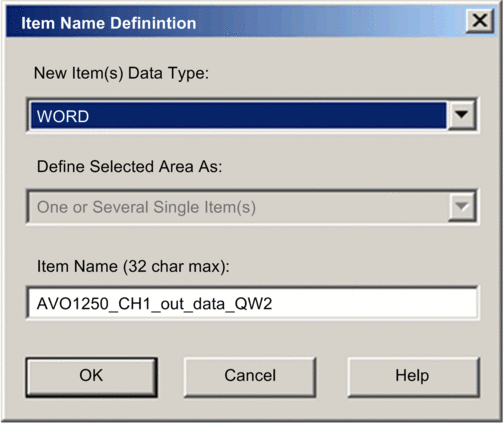

Result: The Item Name Definition dialog opens:

5

Accept the default output name and click OK.

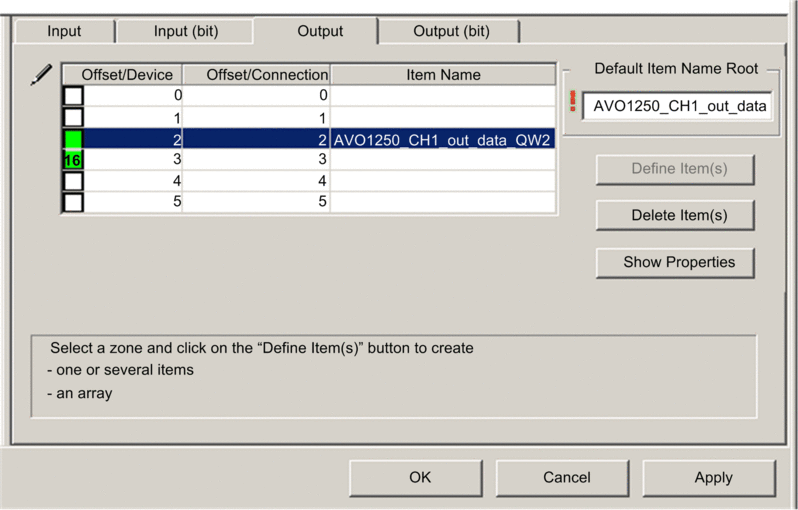

Result: The following output word item is created:

6

Click Apply to save the new item and leave the page open.

7

Repeat steps 2 - 6 for the AVO 1250 channel 2 output data at bytes 4 and 5.

8

Click OK to close the Items window.

9

Select File > Save to save your edits.
