Overview
Distributed grounding with capacitive by-passing is used in systems without equipotential bonding.
Mount the Schneider by-pass terminal (GND 001) as shown in the following representations.

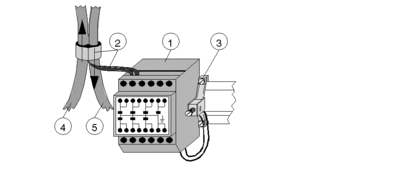

Connection Example
This example shows the connection from the PROFIBUS cable to the by-pass terminal.
1 GND 001
2 Shielding
3 Connection to Rail
4 PROFIBUS cable entering switching cabinet
5 PROFIBUS cable exiting switching cabinet

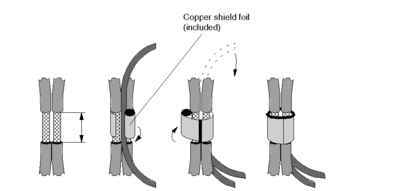

Making Shielding Connections
This example shows the shielding connection with the PROFIBUS cable.
NOTE: The by-pass for the bus ends is to be prepared
on one cable only
