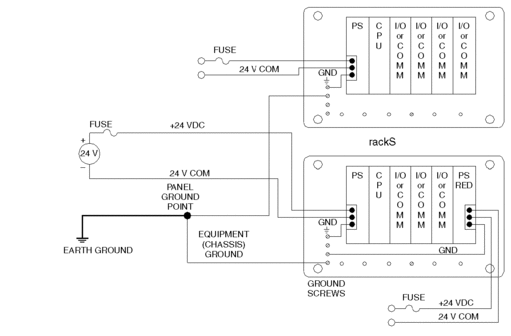

24 VDC Powered System Figure
The following figure shows a 24 VDC powered system.

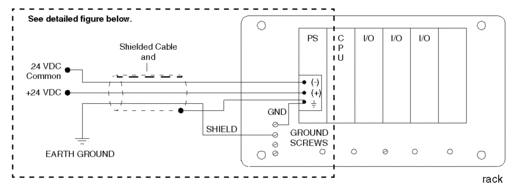

24 VDC Powered System for CE Compliance
The following figure shows a 3 A, 24 VDC powered system for CE compliance.
| CAUTION | |
|---|---|
CE MARK NONCOMPLIANCE The 140 CPS 211 00, the 140 CRA 211 20, and the 140 CRA
212 20 must be installed per the European Directive on EMC (89/336/EEC)
and the Low Voltage Directive (73/23/EEC). Failure to follow these instructions can result in injury or equipment damage. | |

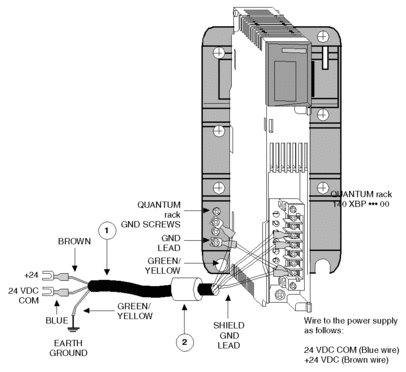

24 VDC Detailed Figure
The following figure shows the detailed installation of a 3 A, 24 VDC powered system for CE compliance.
Parts List.
Callout |
Vendor (or equivalent) |
Part Number |
Description |
Instruction |
|---|---|---|---|---|
1 |
Offlex Series 100cy |
35005 |
Line Cord |
Terminate the shield at the power supply ground terminal |
2 |
Sreward Fairite |
28 BO686-200 2643665702 |
Ferrite Bead |
Install next to the filter and fasten with tie wraps at Both ends of the ferrite bead. |

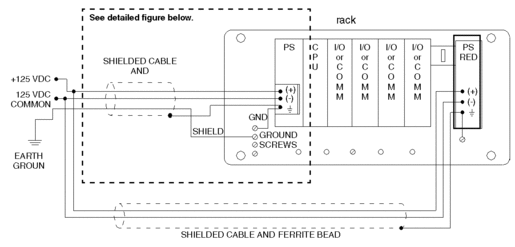

125 VDC Powered System Figure
The following figure shows a 125 VDC powered system for CE compliance.
| CAUTION | |
|---|---|
CE MARK NONCOMPLIANCE The 140 CPS 511 00 & the 140 CPS 524 00 must be installed
per the European Directive on EMC (89/336/EEC) and the Low Voltage
Directive (73/23/EEC). Failure to follow these instructions can result in injury or equipment damage. | |

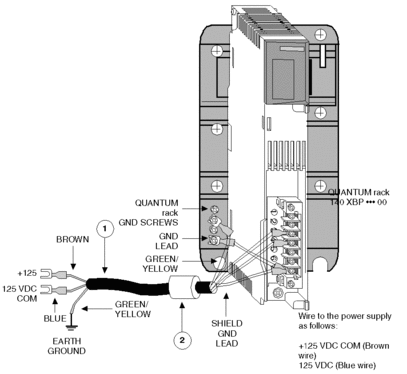

125 VDC Detailed Figure
The following figure shows the detailed installation for the 125 VDC powered system for CE compliance.
Parts List.
Callout |
Vendor (or equivalent) |
Part Number |
Description |
Instruction |
|---|---|---|---|---|
1 |
Offlex Series 100cy |
35005 |
Line Cord |
Terminate the shield at the power supply ground terminal |
2 |
Sreward Fairite |
28 BO686-200 2643665702 |
Ferrite Bead |
Install next to the filter and secure with tie wraps at Both ends of the ferrite bead. |
| CAUTION | |
|---|---|
EUROPEAN COMPLIANCE The 140 CPS 511 00 & the 140 CPS 524 00 must be installed
per the European Directive on EMC (89/336/EEC) and the Low Voltage
Directive (73/23/EEC). Failure to follow these instructions can result in injury or equipment damage. | |
