At a glance
HE10 connector modules are connected to sensors, pre-actuators or terminal blocks using a pre-formed cable designed to allow the smooth and direct transition of module inputs/outputs from wire to wire.
Pre-formed cables TSX CDP 301 / 501
The 3-meter long TSX CDP 301 or 5-meter long TSX CDP 501 pre-formed cables consist of:
a molded HE10 connector at one end with 20 protruding sheathed wires with a cross-section of 0.34 mm2;
free wires at the other end, differentiated by a color code complying with DIN 47100.
NOTE: A nylon thread built into the cable allows
easy-stripping of the sheath.
NOTE: HE10 connectors
must be engaged or disengaged with sensor and pre-actuator voltage
switched off.

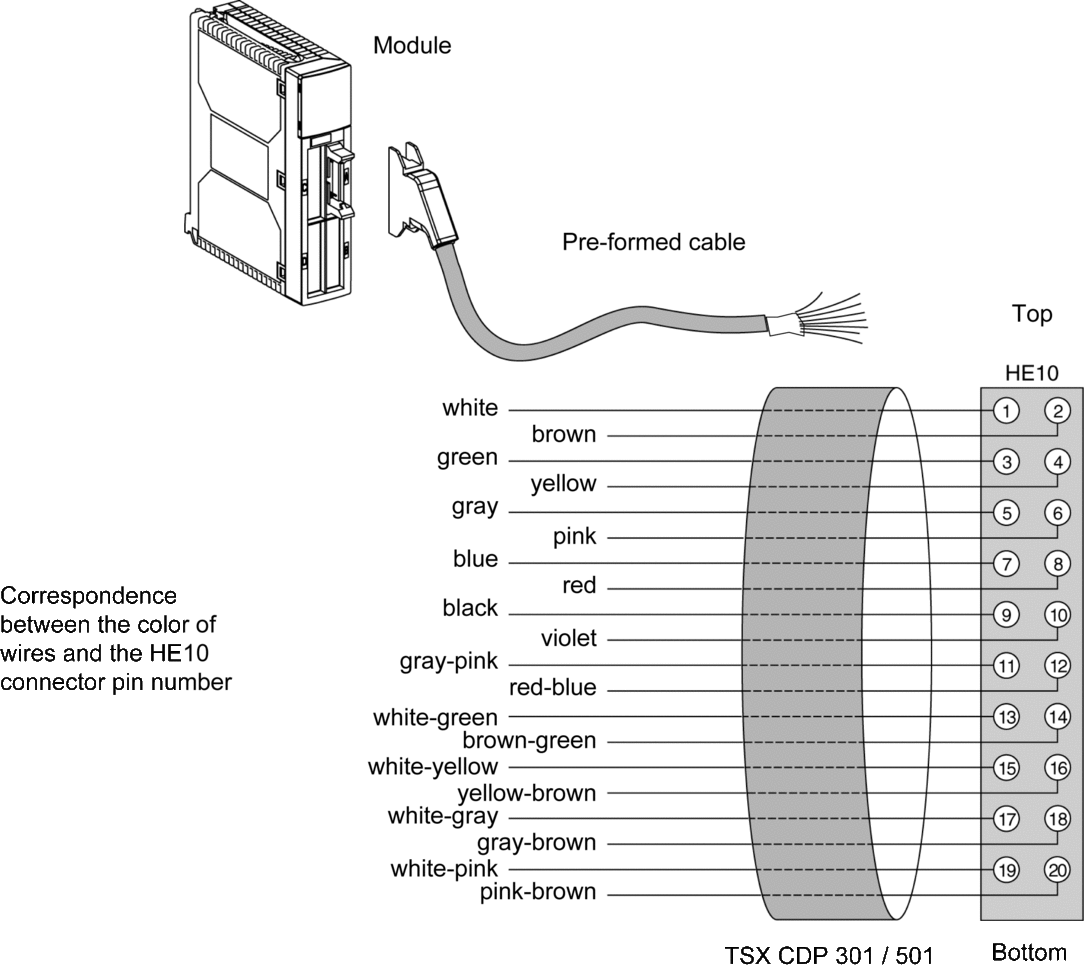

The diagram below shows the connections of the pre-formed cable to the module:
