Establishing HTTP and Write Passwords for NOE
Original instructions
About us
Overview
The following information describes how to set the passwords for HTTP and Data Monitor Write for the NOE.
Connect to the Web Page
Before you can change the HTTP or Data Monitor Write passwords, connect to the correct web page:
Step
Action
1
Enter the URL, for example, http://hostname/secure/embedded/http_passwd_config.htm
2

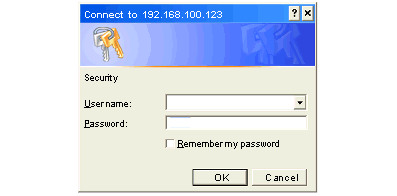

At that URL, supply a user name and password in the dialog box. The size of the user name and password is a maximum of 16 characters in non-extended ASCII.
Note: The default User Name is USER, and the default Password is USER. Both should be changed by the system administrator during module installation.
3
Upon supplying the user name, password, and clicking the OK button, the Modify Passwords page displays.

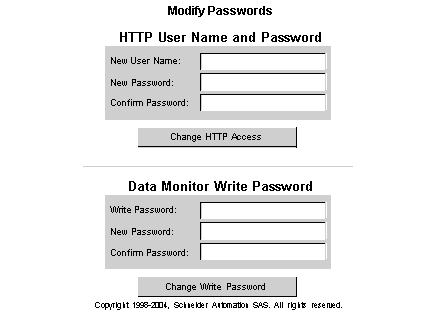

Modify Passwords Page
A single web page is used to modify both the HTTP and Data Monitor Write passwords:
Changing Security Access Parameters
A system administrator should change the default username (USER) and password (USER) to restrict future access to the system. After you decide whether you are changing the HTTP or Write Password security parameters, follow the appropriate procedure below:
HTTP (Username and Password)
Step
Action
1
Type a new username in the New User Name field.
2
Type a new password in the New Password field.
3
Confirm the new password in the Confirm Password field.
4
Click the Change HTTP Access button.
Data Monitor Write (Password)
Step
Action
1
Type the old password in the Write Password field.
2
Type a new password in the New Password field.
3
Confirm the new password in the Confirm Password field.
4
Click the Change Write Password button.
Security Access Change Verification

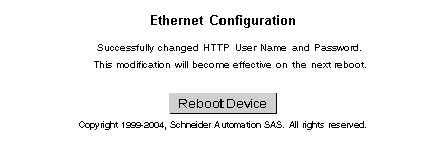

The following figure shows the message that is generated if you click the Change HTTP Access or Change Write Password button:
Clicking the Reboot Device button will reset the username and password for the NOE board.
NOTE: The Reboot will take about 40 seconds. Larger applications can take up to one (1) minute.
During the reboot all services provided by the NOE are not available.
