Introduction
We begin this procedure by configuring the Modicon Quantum Ethernet module rack using Control Expert configuration program.
Configuring the Rack
Using a PC loaded with Control Expert software, proceed as follows:
Step
Action
1
Start Control Expert software.
4
Select New in the File menu to create a New Project dialog box.
5
In the New Project dialog box, expand the Quantum family to select the installed processor (the 140 CPU 65150 in our example).
6

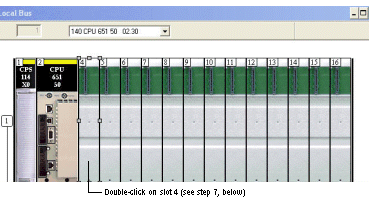

In the project browser, double-click Station → Configuration → PLC bus to access the configuration of the local rack (shown below).
7

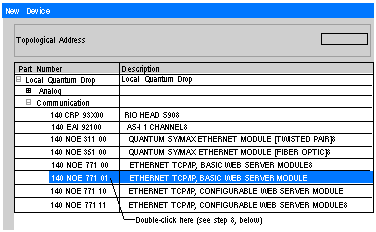

Double-click slot 4 to bring up the New Device menu to show the hardware catalog.
8
Double-click the module that goes in slot 4 (140 NOE 771 01 in our example, shown above).
Note: Alternately, you can click the module and drag it to the selected slot on the rack.
9
Repeat step 8 for each module included in your configuration.
The figure below shows the completed rack assembly for our example with the 140 NOE  771 01 module in slot 4.
