Installation

Introduction

The Modicon Quantum Ethernet modules used for the example in this guide may vary from the ones available at your site. You can substitute the appropriate power supply, CPU, and Ethernet communication module(s) and other Quantum modules to make up a rack similar to the one described below.

Assembling the Rack

Assemble the modules into the rack as follows:

Step	Action
1	Insert the power supply into the leftmost slot (1) on the rack.
2	Add the CPU to the next two slots (2 & 3)on the right of the power supply.
3	Place the remaining Quantum communication modules, beginning with slot 4, to complete your installation.

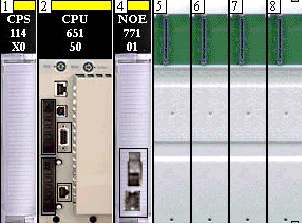

In our example (see below), we use a CPS 114 x0 power supply, a CPU 651 50 processor, and a single NOE 771 01 Ethernet module to make up our rack.
