Edge Detection
Original instructions
About us
Overview
The BMXERT1604T/H module can detect the edge of state change on each discrete input channel. For time stamping function, the module always detects both rising and falling edges.
Parameter Type
Parameter Symbol
Valid Values
Description
Configuration
Channel x edge (x  = 0...15)
0: Both (default)
1: Rising (Only for counter)
2: Falling (Only for counter)
Effective range
Channel
Organization
Each group

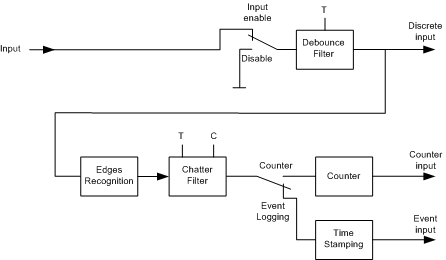

The following figure shows the input processing:
