Flat Addressing

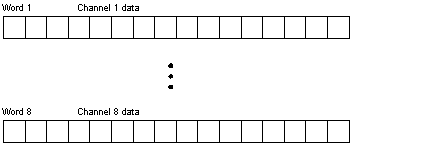

This module requires eight contiguous, 16-bit words (%MW) for output data. The data words formats are as follows.
Topological Addressing
Topological addresses for the 140AIO33000 Output Module:
Point
I/O Object
Comment
Output 1
%QW[\b.e\]r.m.1
Value
Output 2
%QW[\b.e\]r.m.2
Value
• • •
Output 7
%QW[\b.e\]r.m.7
Value
Output 8
%QW[\b.e\]r.m.8
Value
Used abbreviations: b = bus, e = equipment (drop), r = rack, m = module slot.
I/O Map Status Byte

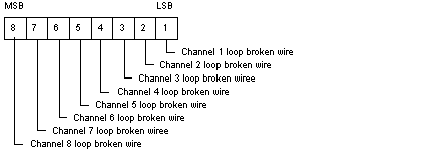

The I/O map status byte is used by the 140AIO33000 Output Module as follows.
