Parameter Configuration
|
|
|
Original instructions
|
|

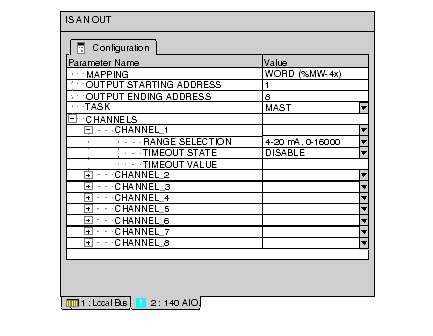

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%MW-4X)
|
-
|
|
|
Outputs Starting Address
|
1
|
-
|
|
|
Outputs Ending Address
|
8
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Channels
Channel1
|
|||
|
Range Selection
|
"4-20 mA, 0-16000"
|
"4-20 mA, 0-4095"
"0-20 mA, 0-20000"
"0-25 mA, 0-25000"
|
|
|
Timeout State
|
DISABLE
|
HOLD LAST VALUE
USER DEFINED
|
|
|
Timeout Value
|
0
|
0-32767
|
only enabled if Timeout State = USER DEFINED
|
|
Channel2-Channel8
|
see Channel1
|
||
