Parameter Configuration
|
|
|
Original instructions
|
|
Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
WORD (%IW-3X)
|
-
|
|
|
Inputs Starting Address
|
1
|
-
|
|
|
Inputs Ending Address
|
10
|
-
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Module Input
|
RTD/Resistance
|
TC/mV
|

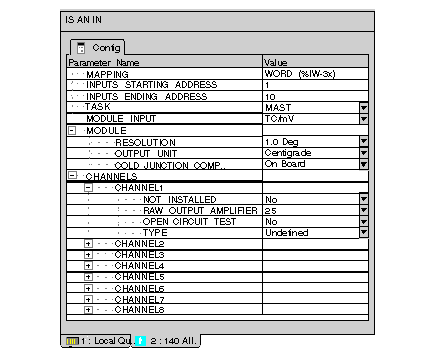

for Module Input=TC/mV see Parameter and Default values (TC)
|
|
Module
|
|||
|
Resolution
|
1.0 Deg
|
0.1 Deg
|
|
|
Output Unit
|
Centigrade
|
Fahrenheit
|
|
|
Value Type
|
Temp
|
Raw Value
|
|
|
Channel1
|
|||
|
Disable
|
No
|
Yes
|
|
|
Wire
|
4 wire
|
2 wire
3 wire
|
|
|
Type
|
"Pt 100, -200 to 850"
|
"Pt 200, -200 to 850"
"Pt 500, -200 to 850"
"Pt 1000, -200 to 850"
"Ni 100, -60 to 180"
"Ni 200, -60 to 180"
"Ni 500, -60 to 180"
"Ni 1000, -60 to 180"
"R, 0 to 766,66 ohms"
"R, 0 to 4000 ohms"
"Apt 100, -100 to 450"
"Apt 200, -100 to 450"
"Apt 500, -100 to 450"
"Apt 1000, -100 to 450"
|
|
|
Channel2-Channel8
|
see Channel1
|
||
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Module Input
|
RTD/Resistance
|
TC/mV
|

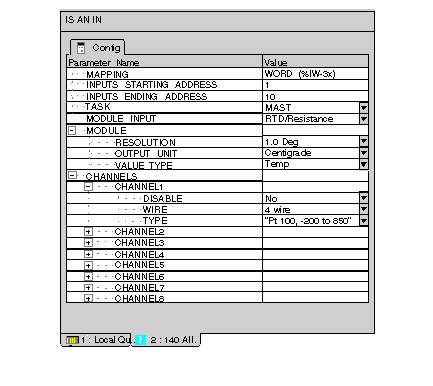

for Module Input=RTD/Resistance see Parameter and Default values (RTD)
|
|
Module
|
|||
|
Resolution
|
1.0 Deg
|
0.1 Deg
|
|
|
Output Unit
|
Centigrade
|
Fahrenheit
|
|
|
Cold Junction Compensator
|
On board
|
Channel 1
|
|
|
Channel1
|
|||
|
Not installed
|
No
|
Yes
|
|
|
Raw Output Amplifier
|
25
|
100
|
|
|
Open Circuit Test
|
No
|
Yes
|
|
|
Type
|
Undefined
|
J, Gain=25
K, Gain=25
E, Gain=25
T, Gain=100
S, Gain=100
R, Gain=100
B, Gain=100
|
|
|
Channel2-Channel8
|
see Channel1
|
||
