Parameter Configuration
|
|
|
Original instructions
|
|

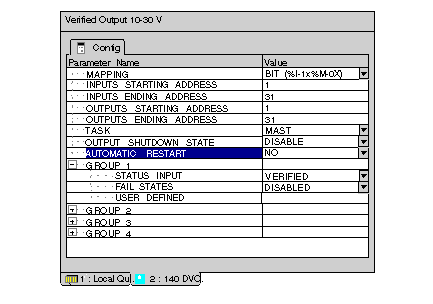

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
BIT (%I-1x%M-0x)
|
WORD (%MW-4X)
|
|
|
Inputs Starting Address
|
1
|
1
|
|
|
Inputs Ending Address
|
31
|
2
|
|
|
Outputs Starting Address
|
1
|
1
|
|
|
Outputs Ending Address
|
31
|
2
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Output Shutdown State
|
DISABLE
|
FAILE STATES
|
|
|
Automatic Restart
|
No
|
Yes
|
|
|
Group_1
|
|||
|
Status Input
|
VERIFIED HEALTH
|
VERIFIED FAULT
INPUT ONLY
ACTUAL
|
|
|
Fail States
|
DISABLE
|
LAST VALUE
USER DEFINED
|
|
|
User Defined
|
0
|
0-255
|
only enabled if Fail States=USER DEFINED
|
|
Group_2
Group_3
Group_4
|
see Group_1
|
||
