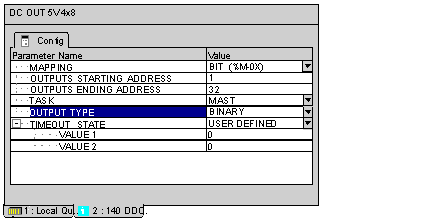

140 DDO 153 10 Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
Mapping
|
BIT (%M-0x)
|
WORD (%MW-4X)
|
|
|
Output Starting Address
|
1
|
1
|
|
|
Output Ending Address
|
32
|
2
|
|
|
Output Type
|
BINARY
|
BCD
|
|
|
Task
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
fixed to MAST if module in other than local
|
|
Timeout State
|
USERDEFINED
|
Hold Last Value
|
|
|
Value 1, Value 2
|
0
|
0-65535
|
only if Timeout State=USERDEFINED
|
