Fuses
Fuses
Internal
None
External
Protect each output point with an external fuse. Schneider Electric recommends a 5 A fuse with an T rating of less than 87.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Before accessing the fuses,
  • Remove the power to the module (pre-actuators), and
  • disconnect the terminal block.
  • Always use a properly rated voltage sensing device at all line and load fuse clips to confirm power is off.
Failure to follow these instructions will result in death or serious injury.
CAUTION
OVER CURRENT TO OUPUTS
Protect each point with a 5 A, 250 V fuse.
Failure to follow these instructions can result in injury or equipment damage.
Illustration

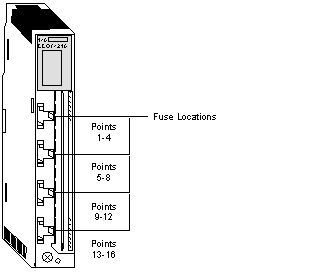

The following figure shows the fuse locations for the 140 DAO 842 10 module.
