Specifications
|
|
|
Original instructions
|
|
Specifications
|
|
|
Original instructions
|
|
Module Type
|
16 OUT (4 groups x 4 points)
|
|
External Power
|
85 ... 253 VAC
|
|
Power Dissipation
|
1.85 W + 1.1 V x Total module load Currents
|
|
Bus Current required (Module)
|
350 mA
|
|
I/O map
|
1 output words
|
|
Fault Detection
|
Blown fuse detect, loss of field power
|
|
10 s
|
300 VAC
|
|
1 Cycle
|
400 VAC
|
|
Operating Voltage (max.)
|
85 ... 253 VAC
|
|
ON State Drop / Point
|
1.5 VAC
|
|
Each Point
|
4.0 A continuous, 85 ... 132 VAC rms
3.0 A continuous, 170 ... 253 VAC rms
|
|
Each Group
|
4.0 A continuous
|
|
Per Module
|

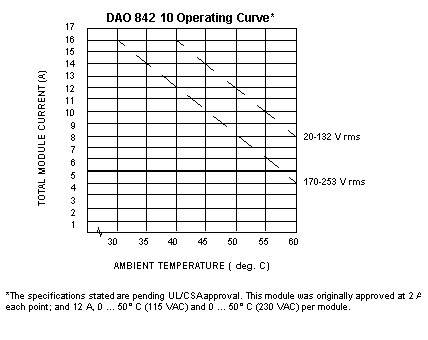

16 A continuous (see the chart below)
|
|
Frequency
|
47 ... 63 Hz
|
|
Minimum Load Current
|
5 mA
|
|
OFF State Leakage / Point (max.)
|
2.5 mA @ 230 VAC
2 mA @ 115 VAC
|
|
One Cycle
|
30 A per point, 45 A per group
|
|
Two Cycles
|
20 A per point, 30 A per group
|
|
Three Cycles
|
10 A per point, 25 A per group
|
|
Applied dV/dT
|
400 V / μs
|
|
Group to Group
|
1000 VAC rms for 1 minute, galvanically isolated
|
|
Output to Bus
|
1780 VAC rms for 1 minute
|
|
Output Protection (internal)
|
RC snubber suppression
|
|
OFF - ON
|
0.5 of one line cycle max.
|
|
ON - OFF
|
0.5 of one line cycle max.
|
