Specifications
|
|
|
Original instructions
|
|
Specifications
|
|
|
Original instructions
|
|
Module Type
|
16 OUT isolated
|
|
External Power
|
Not required for this module
|
|
Power Dissipation
|
1.85 W + 1.1 V x Total module load Currents
|
|
Bus Current required (Module)
|
350 mA
|
|
I/O map
|
1 output words
|
|
10 s
|
300 VAC
|
|
1 Cycle
|
400 VAC
|
|
Operating Voltage (max.)
|
20 ... 253 VAC
|
|
ON State Drop / Point
|
1.5 VAC
|
|
Each Point
|
24 to 115 VAC, 4 Amps per output
200 to 230 VAC, 3 Amps per output
|
|
Any four contiguous Points
|
4.0 A max. continuous for the sum of the four points.
|
|
Per Module
|

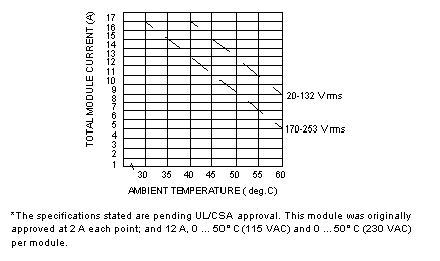

16 A continuous (see chart below)
|
|
Frequency
|
47 ... 63 Hz
|
|
Minimum Load Current
|
5 mA
|
|
OFF State Leakage / Point (max.)
|
2.5 mA @ 230 VAC
2 mA @ 115 VAC
1 mA @ 48 VAC
1 mA @ 24 VAC
|
|
One Cycle
|
30 A per point
|
|
Two Cycles
|
20 A per point
|
|
Three Cycles
|
10 A per point
|
|
Applied DV/DT
|
400 V / μs
|
|
Output to Output
|
1500 VAC rms for 1 minute
|
|
Output to Bus
|
1780 VAC rms for 1 minute
|
|
Output Protection (internal)
|
RC snubber suppression
|
|
OFF - ON
|
0.5 of one line cycle max.
|
|
ON - OFF
|
0.5 of one line cycle max.
|
|
Internal
|
None
|
|
External
|
Protect each output with an external 5 amp fuse with an I2T rating of less than 87.
|
 CAUTION |
|
OVER CURRENT TO OUTPUTS
Protect each point with a 5 A, 250 V fuse
Failure to follow these instructions can result in injury or equipment damage.
|
