Fuses
Fuses
Internal
4 A for 3 outputs, 250 V (See figure below for the location of the fuses.)
External
Required to protect each output.
CAUTION
DAMAGE TO MODULE OUTPUTS
Protect each output with a 1 A, 250 V fuse.
Failure to follow these instructions can result in injury or equipment damage.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Before accessing the fuses:
  • remove the power to the module (pre-actuators).
  • disconnect the terminal block
  • Always use a properly rated voltage sensing device at all line and load fuse clips to confirm that the power is off
Failure to follow these instructions will result in death or serious injury.
Illustration

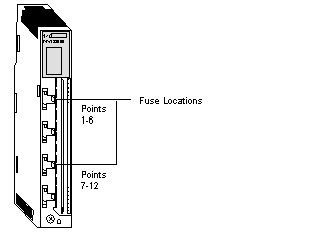

The following figure shows the fuse locations for the 140 DDO 885 00 module.
