Fuses
Fuses
Internal
5 A fuse for each group. (Part # 043502405) or equivalent). For the location of the fuses see figure below.
External
User installed per local and national electrical codes
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Before accessing the fuses,
  • Remove the power to the module (pre-actuators), and
  • disconnect the terminal block.
  • Always use a properly rated voltage sensing device at all line and load fuse clips to confirm power is off.
Failure to follow these instructions will result in death or serious injury.
Illustration

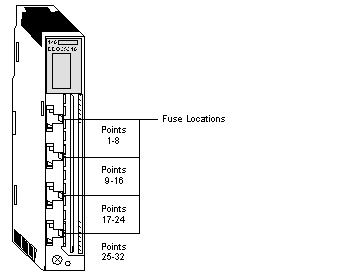

The following figure shows the fuse locations for the 140 DDO 353 00 module.
