Illustration

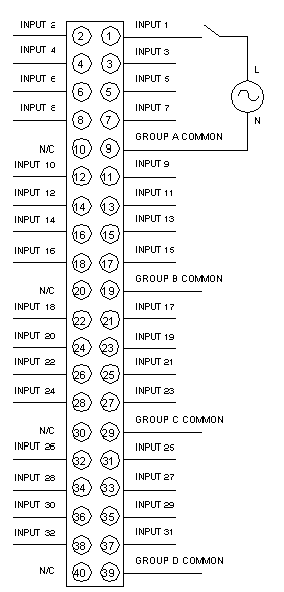

The following figure shows the 140 DAI 753 00 wiring diagram.
1.
N / C = Not Connected.
2.
When field wiring the I/O module, the maximum wire size that should be used is 1-14 AWG or 2-16 AWG; the minimum size is 20 AWG.
WARNING
UNINTENDED EQUIPMENT OPERATION
Ensure that all inputs in a group are from the same phase of line input voltage.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
NOTE: The tightening torque must be between 0.5 Nm and 0.8 Nm.
NOTICE
DESTRUCTION OF ADAPTER
  • Before tightening the locknut to the torque 0.50...0.80 Nm, be sure to properly position the right-angle F adapter connector.
  • During tightening, be sure to maintain the connector securely.
  • Do not tighten the right-angle F adapter beyond the specified torque.
Failure to follow these instructions can result in equipment damage.
